This guide provides instructions for how to modify your existing PMI Quarterly Report “Pivot Table” in DHIS2 from District level reporting to Health Facility level reporting for usage in the DHIS2 API integration with M-DIVE. The steps shown below will help users submit facility-level data from any DHIS2 (HMIS or LMIS) instance directly into M-DIVE as part of the PMI Quarterly Report.
See here for instructions on how to create a PMI Quarterly Report Pivot Table in DHIS2 from.
Step 1: Navigating from Data visualizer to Pivot Table in DHIS2

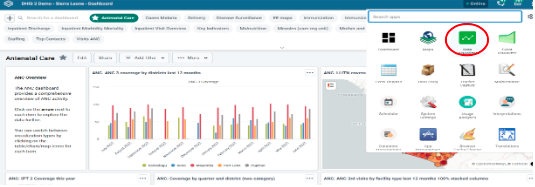

a. Click on the Data Visualizer icon or module on the right side as highlighted in Red below. This will open a new page that will show you previous table, charts and columns options for use or selection.

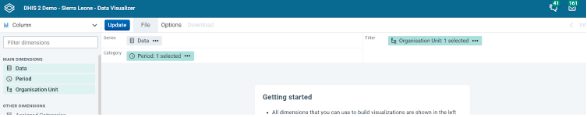

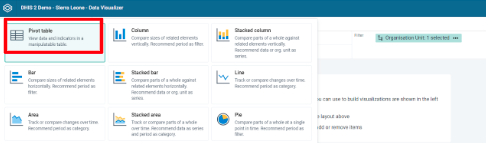

b. Then you will see a new page as shown below. Go to the upper left side and click on the dropdown beside Column and change the option “Pivot Table”.

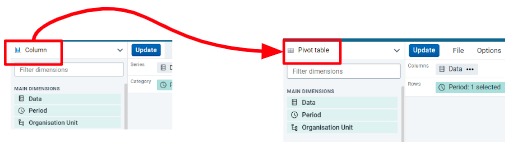

c. By choosing the option “Pivot Table” the icon will change from Column to Pivot Table.
Step 2: Open existing Pivot table saved from last Quarterly Report
Recall that your Malaria specific indicator and/or data element table created within DHIS2 previously from the last PMI quarterly report already exists in DHIS2. You will open it and simply modify it by changing the reporting level from District to Facility and update the table before creating the JSON for use in the API call.

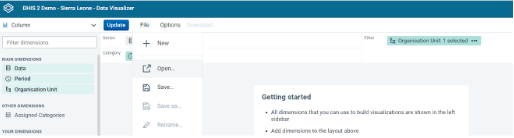

a. Click on “File”, as shown below:
b. Select “Open”, as shown below:

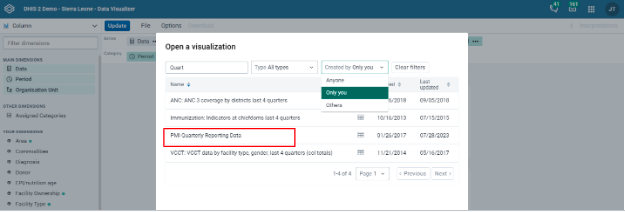

You will see a pop-up screen called “Open a visualization” as shown below. Then filter to “Only you”, this will show all previous tables you created for “PMI Quarterly report” and click on it to open it.

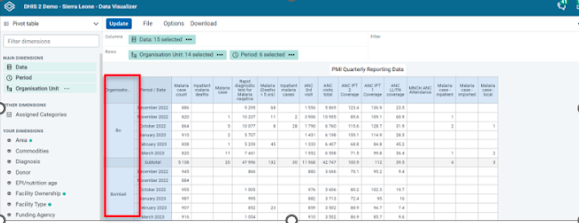

c. Once the “PMI Quarterly report” is opened, note that it will show the last data submitted with organisation unit at the district level.
Step 3: Edit the Pivot table from District to Facility and save as new Table “PMI Quarterly report-Facility”

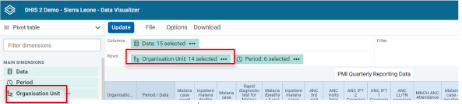

a. Click on “organisation unit” as shown below:

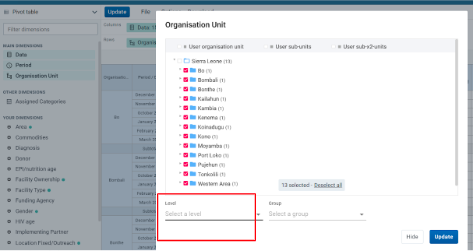

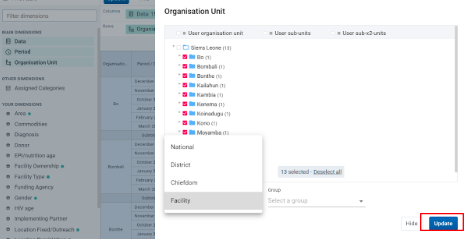

b. In the pop up, choose “Facility” in the “Level” dropdown.
c. Click on “Update” to see your final pivot table needed for API submission.

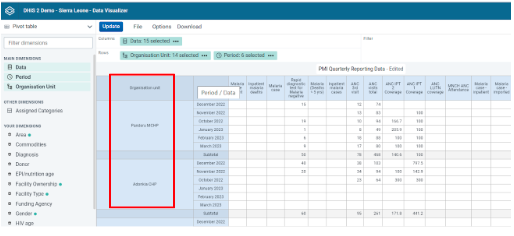

d. You will now see the final pivot table needed for API submission.
Follow STEP 4 to 7 in the API documentation here DHIS2 Integration with M-DIVE (April 2021) to transfer the data to M-DIVE.
Additional Notes
- Transmitting facility-level data is likely to take much longer than district-level.
- Before transmitting a full 6 month period for all facilities in your country, we suggest testing a smaller submission of all facilities in one province, state or region.
- Facility-level data is aggregated in M-DIVE to all higher-level administrative boundaries. Unless additional transformations or adjustments need to be made to arrive at accurate district-, regional-, and country-level values, it is not necessary to also submit data at these levels.
